Security handles ALPHA ES1 ZA K7

Product code
MB00008916
DIECKMANN View catalogue of manufacturer
main product photo
All prices include VAT
From €49.90 €62.38
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Fast delivery
Delivery by our transport, a courier, or to a parcel locker
Consultations
Consultations
with industry profesionals
Ask your question here
Secure payments
Online banking, credit cards, REVOLUT,
Google Pay / Apple Pay / Click to Pay
Library
Library
Manufacturers' catalogues, product documentation etc.

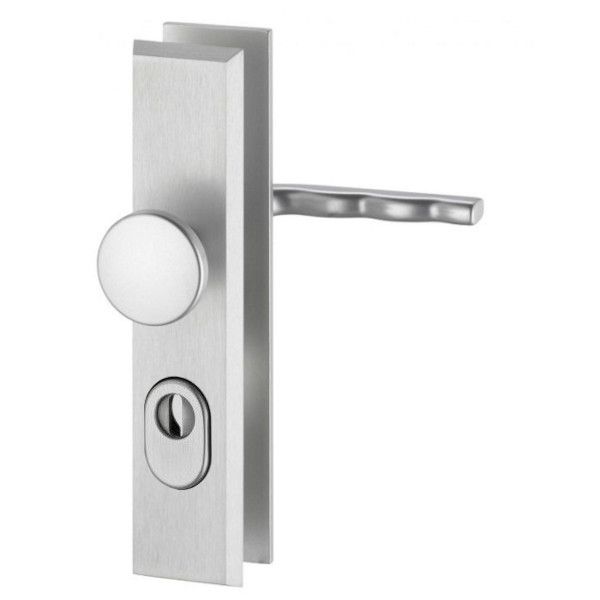

Aluminium security handles with door knob and cylinder guard ALPHA ES1-ZA K7

Manufacturer - DIECKMANN (Germany)

  • security backplate set with inactive door knob K7 on the outside
  • cylinder guard with cylinder projection 12 - 17 mm
  • conforms with security class ES1
  • solid all-metal backplates on door exterior and interior
  • partial 2mm steel core, surface hardened, on exterior plate
  • concealed triple connecting M6 screws, accessible from inside of door
  • M6 positioning studs, drill-resistant, Ø10 mm
  • exterior backplate thickness: 15 mm
  • interior backplate thickness: 6 mm
  • centre distance: PZ 92 mm
  • spindle: 8 mm
  • backplate length: 240 mm, width: 52 mm
  • doorknob diameter: 50 mm
  • suitable for door thickness: 65-75 mm
  • material aluminium anodised: natural aluminium tone (F1)
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. ALPHA Security backplates handle/knob K7 and cylinder shield, 8/92mm, door thickness 65-75mm, aluminium natural F1
    ALPHA Security backplates handle/knob K7 and cylinder shield, 8/92mm, door thickness 65-75mm, aluminium natural F1
    Code: SB00025311
    Art. Nr.: 8652/0000/01VK8
    Price:
    From Special Price €49.90 was €62.38
    This price applies only to items in stock. For larger quantities price is calculated upon request.
    In Stock: 2 set
Manufacturer DIECKMANN
Series ALPHA
material aluminium anodised
purpose for exterior doors and doors with increased intruder resistance requirements
leaf material for wooden and metal doors
construction lever handle / inactive door knob
security class ES1
cylinder guard yes
fire safety not suitable for fire safety doors
door thickness 65-75 mm
Compatibility standard German (DIN)
door direction universal use for DIN right and left hand doors
centre distance PZ 92 mm
backplate/rose size 52 x 240 mm
backplate/rose shape square
outer backplate thickness 15 mm
inner backplate thickness 6 mm
handle length 115 mm
handle square spindle size 8 mm
distance from rose surface to outer edge of handle 57 mm
door knob shape round
fastening type connecting screws, accessible from inside of door
fastening elements included in set
