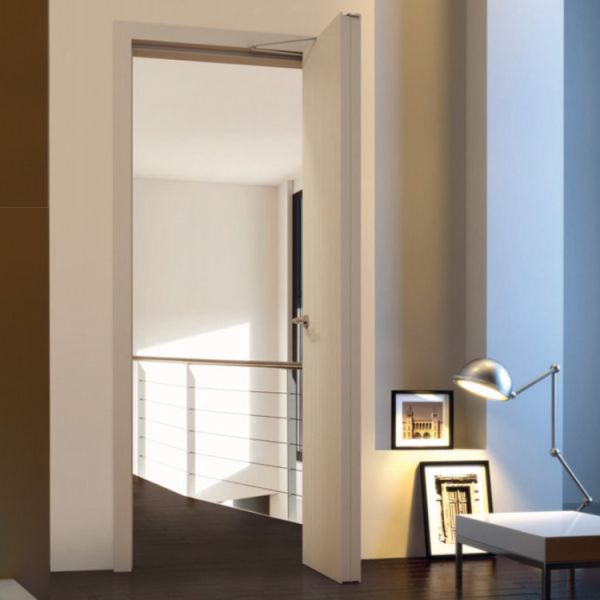

COMPACK® Living folding door system

COMPACK® Living folding door system

Manufacturer- CELEGON (Italy)


• harware sytem without sliding track, reduces the overall clearance needs of the moving door and the open leaf positioned on the wall by up to 50%
• allows for more freedom of design, removing the space constraints inherent to traditional swinging doors
• the reduction in clearance requirements eliminates the problem of interference between doors.
• the system is designed for any type of interior door and can be installed without additional wall or door modifications.
• special steel hinge allows the leaf to be folded in a stable, silent way
• tested in more than 100,000 cycles

Technical data

• 2 versions are available:

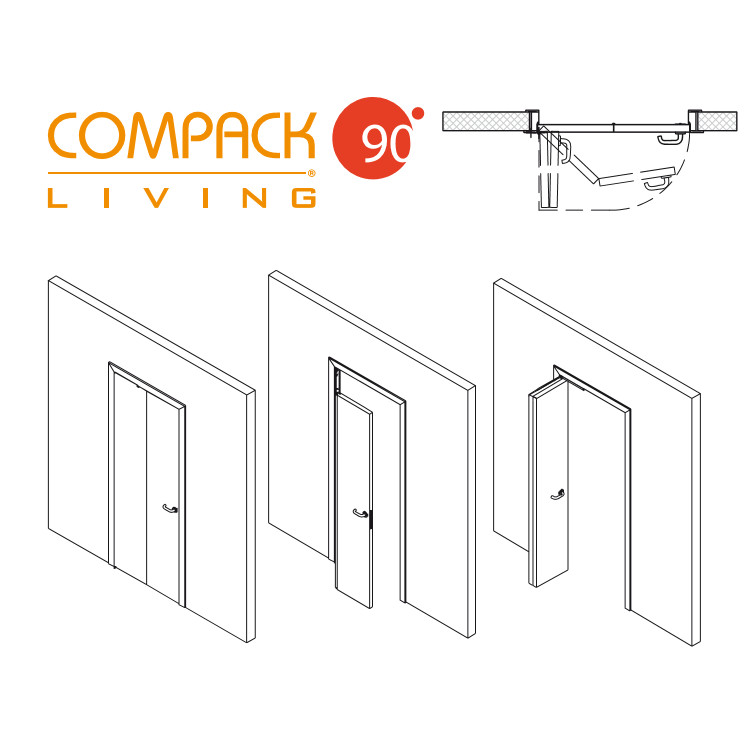

  • COMPACK® LIVING 90° - the leaf lies orthogonally to the wall

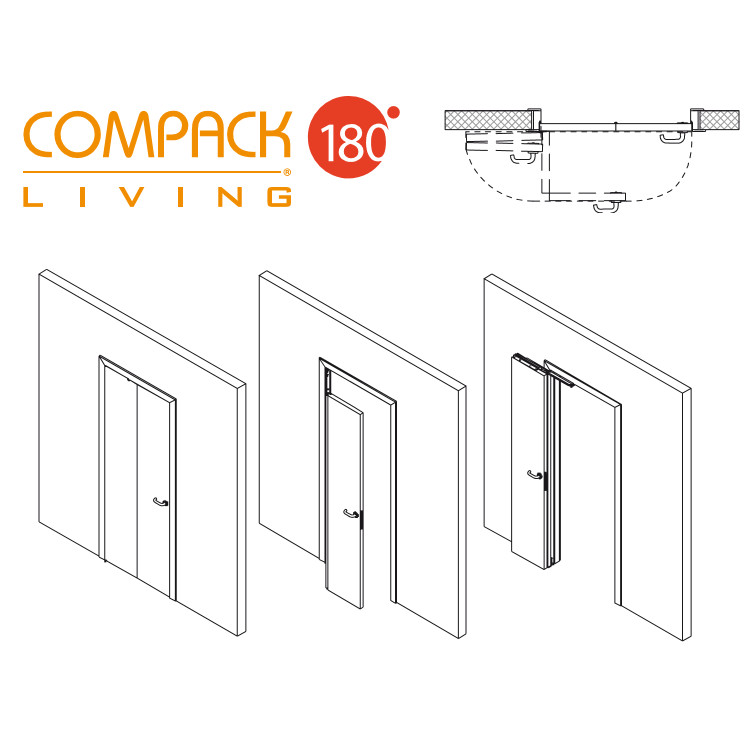

  • COMPACK® LIVING 180° - he leaf opens completely to sit against the wall.
• both systems use identical door leaves and frames
• both systems are mutually compatible
• total leaf weight: 50 kg
• a combination of symmetrical or asymmetrical door leaves is possible
• minimum wall opening with single opening doors:
  • 700 mm with symmetric leaves
  • 650 mm with asymmetric leaves
• the maximum wall opening with single opening doors with symmetric and asymmetric leaves: 1100 mm
• minimum wall opening with double doors:
  • 1320 mm with symmetric leaves
  • 1120 mm with asymmetric leaves
• the maximum wall opening with double doors with symmetric and asymmetric leaves: 2120 mm
• the door leaves can be equipped with a traditional door handle on one side and a recessed handle on the other side
• the system can be combined with a magnetic lock COMPACK
• available finishes:
  • stainless steel
  • black

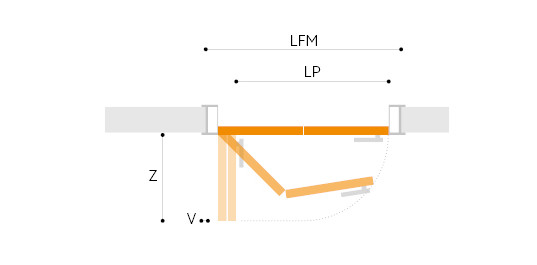

COMPACK LIVING 90°

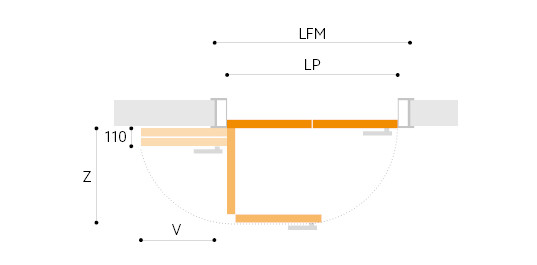

COMPACK LIVING 180°
