Mortise lock for emergency doors SSF FH 61 B+Plug-in-key

Product code
MB00010117
SSF
main product photo
All prices include VAT
From €86.52
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Fast delivery
Delivery by our transport, a courier, or to a parcel locker
Consultations
Consultations
with industry profesionals
Ask your question here
Secure payments
Online banking, credit cards, REVOLUT,
Google Pay / Apple Pay / Click to Pay
Library
Library
Manufacturers' catalogues, product documentation etc.

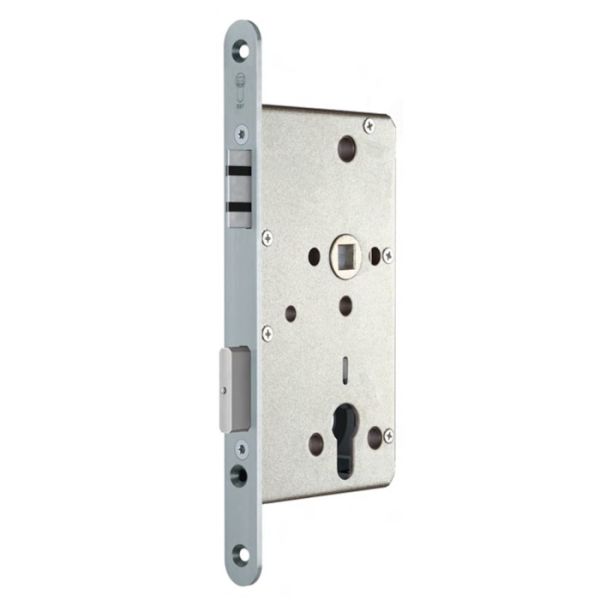

Mortice lock for emergency doors SSF FH61 B

Manufacturer - SSF (Germany)

  • mortice lock for single-leaf emergency exit and panic doors
  • complies with the requirements of EN 179 and EN 1125
  • suitable for use in fire-resistant doors
  • anti-panic function B
  • Plug-in-key function – the key may remain in the cylinder; all types of cylinders can be used
  • reinforced spring on both sides – handles can be used without an additional spring
  • prepared for Euro-profile cylinders (PZ)
  • follower and whisper latch made of silicon tombac
  • deadbolt head made of die-cast zinc, nickel-plated
  • fully enclosed, galvanised lock case
  • optional: monitoring points for microswitches
  • when the deadbolt is withdrawn, it is withdrawn earlier than the latch
  • centre distance: 72 mm
  • split follower for a 9 mm square spindle
  • follower rotation angle: 30°
  • backset: 55, 60 or 65 mm
  • ronded faceplate: satin stainless steel
  • faceplate dimensions: 20 or 24 × 235 mm
  • designed for use with a compatible emergency exit lever handle set to EN 179 or a panic bar to EN 1125

Classification key in accordance with EN 12209

3 M 5 1 0 G 2 B A 2 0
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. FH 61 PZ 65/72/24/9 mortise lock for emergency doors EN179 / 1125, function B+ Plug-in-key, stainless steel, LEFT
    FH 61 PZ 65/72/24/9 mortise lock for emergency doors EN179 / 1125, function B+ Plug-in-key, stainless steel, LEFT
    Code: SB00030425
    Art. Nr.: A6107 5L/541 RD/AP01
    Price:
    From €86.52
    In Stock: 0 pc.
    Visma Quote
  2. FH 61 PZ 65/72/24/9 mortise lock for emergency doors EN179 / 1125, function B+ Plug-in-key, stainless steel, RIGHT
    FH 61 PZ 65/72/24/9 mortise lock for emergency doors EN179 / 1125, function B+ Plug-in-key, stainless steel, RIGHT
    Code: SB00030426
    Art. Nr.: A6107 5L/542 RD/AP02
    Price:
    From €86.52
    In Stock: 0 pc.
    Visma Quote
Manufacturer SSF
Series FH61
lock type single-point lock for hinged doors
lock operation mechanical
installation type mortise
purpose for interior doors / for exterior doors
leaf material for wooden and metal doors
load capacity high
class as per EN 12209 (DIN 18251) class 4 according to DIN 18251 (EN class 3)
suitable for emergency exits complies with 179 and EN 1125 - emergency/panic door equipment
evacuation function B
fire safety complies with EN standard fire safety requirements
Compatibility standard German (DIN)
possible spindle depth 55 / 60 / 65 mm
door direction when ordering please indicate door swing direction
locking function PZ - with profile cylinder hole
centre distance PZ 72 mm
lock case galvanised closed
latch key-retractable
lock bolt material nickel-coated
bolt projection 20 mm
sound insulation no
handle square spindle size 9 mm
bundling options lock compatible with split spindle
face plate shape rounded
face plate width 24 mm
face plate length 235 mm
face plate finish nerūsējošais tērauds
