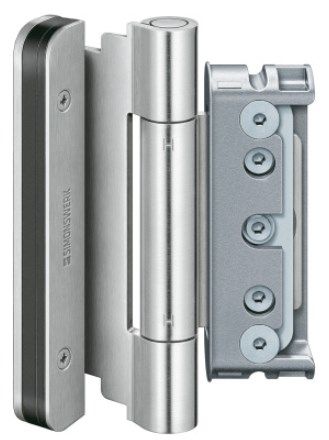

main product photo
All prices include VAT
From €90.77 €90.77
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Fast delivery
Delivery by our transport, a courier, or to a parcel locker
Consultations
Consultations
with industry profesionals
Ask your question here
Secure payments
Online banking, credit cards, REVOLUT,
Google Pay / Apple Pay / Click to Pay
Library
Library
Manufacturers' catalogues, product documentation etc.

Set of adjustable hinges for exterior doors with acoustic seal BAKA Protect 4010 3D FD MSTS
Manufacturer - SIMONSWERK (Germany)

    • suitable for doors with acoustic seal
    • suitable for fire safety doors, doors with high level of acoustic insulation and doors with anti-intruder security
    • efficient and economic fitting, using the well-developed templates
    • suitable also for doors with thin overlap
    • integrated security pin (MSTS) for doors opening outwards
    • high-quality maintenance-free bearings
    • 3-dimensional adjustability: side (+/- 3 mm), height (+/- 3 mm), depth (+/- 3 mm)
    • threaded frame pin
    • concealed receiver in door leaf
    • knuckle length: 140 mm, diameter: 20 mm
    • milling diameter: 20 mm
    • overlap width: 15 mm, 18 mm
    • available in sets of 3 hinges: 1 height-adjustable hinge, 2 depth-adjustable hinges
    • max load capacity:
        • 160 kg with 2 hinges (leaf 1000 x 2000 mm; distance between 1st and 2nd hinge reference line: 1435 mm)
        • if using 3 hinges (standard set) or a 4th hinge, the total load capacity does not increase but the load-bearing endurance improves for wide doors and doors fitted with door closers, automated systems and stoppers
        • if necessary, a 4th hinge can be ordered separately
    • material:
      • steel, light galvanised
      • stainless steel
      • bronze tone
      • white
      • natural aluminium tone F1
      • black
      • gold tone, polished, corrosion resistance grade 0 (not suitable for harsh environments)

Classification code according to DIN EN 1935
2 7 3 1 1 *1 0 10*2
*1 depending on surface finish
*2 test cycles in continuous operation with leaf of 120 kg



All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Entrance door hinges (3 hingeds) BAKA protect 4010 3D FD MSTS, light galvanized
    Entrance door hinges (3 hingeds) BAKA protect 4010 3D FD MSTS, light galvanized
    Code: SB00008752
    Art. Nr.: 500001483
    Price:
    From €90.77
    In Stock: 98 kit
  2. Entrance door hinges (3 hingeds) BAKA Protect 4010 3D FD MSTS, stainless steel
    Entrance door hinges (3 hingeds) BAKA Protect 4010 3D FD MSTS, stainless steel
    Code: SB00008748
    Art. Nr.: 500001475
    Price:
    From €199.61
    In Stock: 43 kit

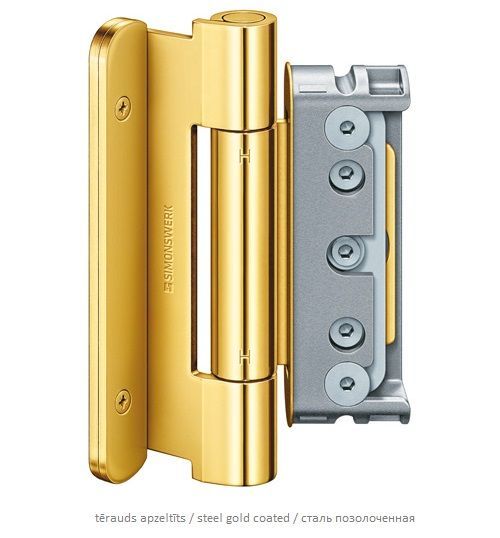

  3. Entrance door hinges (3 pc.) BAKA Protect 4010 3D FD MSTS, polished gold-coated
    Entrance door hinges (3 pc.) BAKA Protect 4010 3D FD MSTS, polished gold-coated
    Code: SB00008980
    Art. Nr.: 500001457
    Price:
    From €264.30
    In Stock: 1 kit
  4. Entrance door hinges (3 hingeds) BAKA Protect 4010 3D FD MSTS, RAL9005 black
    Entrance door hinges (3 hingeds) BAKA Protect 4010 3D FD MSTS, RAL9005 black
    Code: SB00008751
    Art. Nr.: 500001482
    Price:
    From €108.32
    In Stock: 101 kit

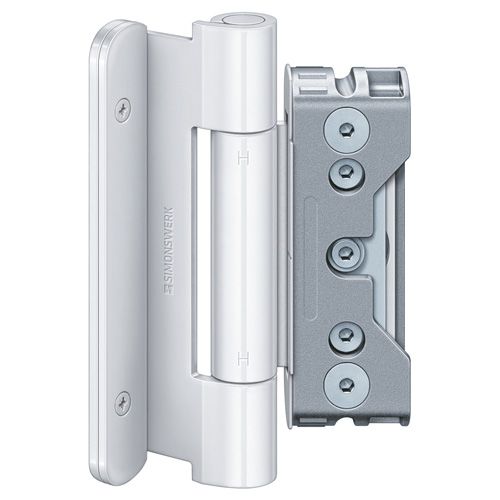

  5. Entrance door hinges (3 hingeds) BAKA Protect 4010 3D FD MSTS, RAL9016 white
    Entrance door hinges (3 hingeds) BAKA Protect 4010 3D FD MSTS, RAL9016 white
    Code: SB00008749
    Art. Nr.: 500001477
    Price:
    From €110.59
    In Stock: 7 kit

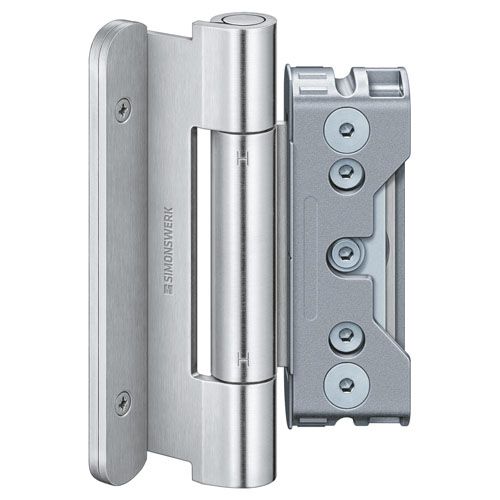

  6. Entrance door hinges (3 pc.) BAKA Protect 4010 3D FD, F1 tone
    Entrance door hinges (3 pc.) BAKA Protect 4010 3D FD, F1 tone
    Code: SB00008976
    Art. Nr.: 5 080823 0 12485
    Price:
    From €102.66
    In Stock: 121 kit

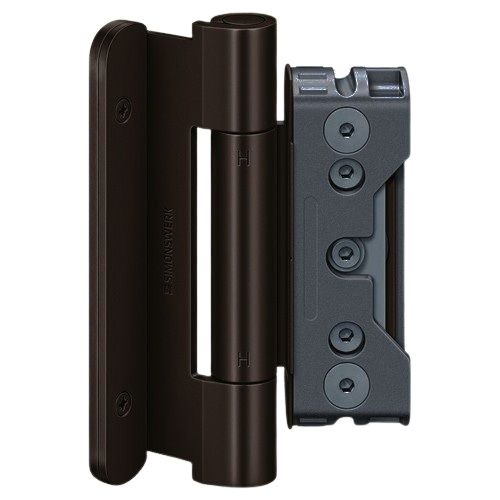

  7. Entrance door hinges (3 hinges) BAKA Protect 4010 3D MSTS, brown H9 (RAL8022)
    Entrance door hinges (3 hinges) BAKA Protect 4010 3D MSTS, brown H9 (RAL8022)
    Code: SB00008750
    Art. Nr.: 500001478
    Price:
    From Special Price €107.48 was €126.45
    This price applies only to items in stock. For larger quantities price is calculated upon request.
    In Stock: 16 kit

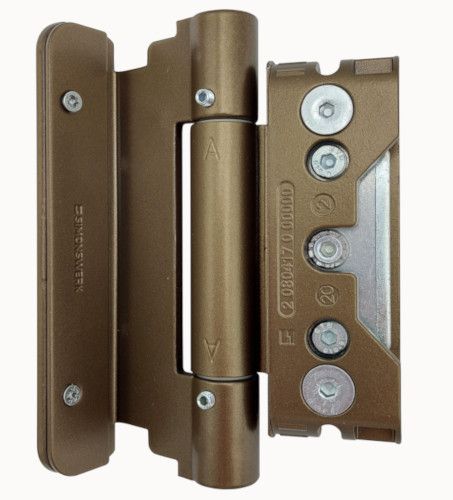

  8. Entrance door hinges (3 pc.) BAKA Protect 4010 3D FD, bronze tone
    Entrance door hinges (3 pc.) BAKA Protect 4010 3D FD, bronze tone
    Code: SB00008975
    Art. Nr.: 5 080823 0 16885
    Price:
    From €101.75
    In Stock: 117 kit

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. Entrance doot hinge (4th) BAKA protect 4010 3D FD, stainless steel
    Entrance doot hinge (4th) BAKA protect 4010 3D FD, stainless steel
    Code: SB00008979
    Art. Nr.: 4010 FD STD/4
    Price:
    From €67.92
    In Stock: 4 pc.
  2. Entrance door hinge (4th hinge) BAKA Protect 4010 3D FD, light galvanized
    Entrance door hinge (4th hinge) BAKA Protect 4010 3D FD, light galvanized
    Code: SB00008762
    Art. Nr.: 500001550
    Price:
    From €30.93
    In Stock: 10 pc.
  3. Entrance door hinge (4th hinge) BAKA Protect 4010 3D FD, F1
    Entrance door hinge (4th hinge) BAKA Protect 4010 3D FD, F1
    Code: SB00008977
    Art. Nr.: 4010 FD F1/4 enge
    Price:
    From €34.92
    In Stock: 8 pc.
  4. Fourth hinge BAKA Protect 4010 3D FD, RAL8022 dark brown
    Fourth hinge BAKA Protect 4010 3D FD, RAL8022 dark brown
    Code: SB00021196
    Art. Nr.: 4010 FD8022/4enge
    Price:
    From €59.40
    In Stock: 1 pc.
  5. Entrance doot hinge (4th) BAKA protect 4010 3D FD, black
    Entrance doot hinge (4th) BAKA protect 4010 3D FD, black
    Code: SB00008986
    Art. Nr.: 4010 FD9005/4enge
    Price:
    From €43.03
    In Stock: 1 pc.
  6. Entrance doot hinge (4th) BAKA protect 4010 3D FD, RAL9016 white
    Entrance doot hinge (4th) BAKA protect 4010 3D FD, RAL9016 white
    Code: SB00008987
    Art. Nr.: 4010 FD9016/4enge
    Price:
    From €43.03
    In Stock: 2 pc.
  7. Entrance door hinge (4th hinge) BAKA Protect 4010 3D FD, bronze
    Entrance door hinge (4th hinge) BAKA Protect 4010 3D FD, bronze
    Code: SB00008988
    Art. Nr.: 4010 FDBRO/4 enge
    Price:
    From €34.65
    In Stock: 1 pc.
  8. BAKA protect 4010 3D FD fourth hinge, golden
    BAKA protect 4010 3D FD fourth hinge, golden
    Code: SB00008991
    Art. Nr.: 4010 FDMSTS M1 4.
    Price:
    From €90.74
    In Stock: 0 pc.
    Visma Quote
  9. BAKA Decorative sleeves Nr.12, matt chrome, F1
    BAKA Decorative sleeves Nr.12, matt chrome, F1
    Code: SB00008789
    Art. Nr.: 500001749
    Price:
    From €12.12
    In Stock: 26 kit
  10. Decorative sleeves BAKA No.12, matt nickel/F2
    Decorative sleeves BAKA No.12, matt nickel/F2
    Code: SB00008786
    Art. Nr.: 500001746
    Price:
    From €12.12
    In Stock: 28 kit
  11. BAKA Decorative sleeves Nr.12, white
    BAKA Decorative sleeves Nr.12, white
    Code: SB00008790
    Art. Nr.: 500001750
    Price:
    From €7.34
    In Stock: 6 kit
  12. BAKA Decorative sleeves Nr.12, browned
    BAKA Decorative sleeves Nr.12, browned
    Code: SB00008791
    Art. Nr.: 500001751
    Price:
    From €7.22
    In Stock: 0 kit
    Visma Quote

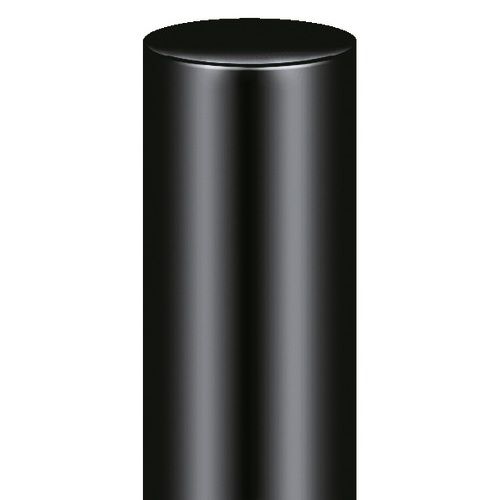

  13. BAKA decorative sleeves Nr.12, black
    BAKA decorative sleeves Nr.12, black
    Code: SB00028617
    Art. Nr.: 500001752
    Price:
    From €7.22
    In Stock: 12 kit
  14. BAKA Decorative sleeves Nr.12, browned
    BAKA Decorative sleeves Nr.12, browned
    Code: SB00008787
    Art. Nr.: 500001747
    Price:
    From €12.12
    In Stock: 6 kit
  15. BAKA Decorative sleeves Nr.12, gold
    BAKA Decorative sleeves Nr.12, gold
    Code: SB00008788
    Art. Nr.: 500001748
    Price:
    From €12.12
    In Stock: 9 kit
  16. Cover for BAKA4000 hinge construction, white
    Cover for BAKA4000 hinge construction, white
    Code: SB00008722
    Art. Nr.: 500001326
    Price:
    From €0.73
    In Stock: 0 pc.
    Visma Quote
  17. Cover for BAKA4000 hinge construction, brown
    Cover for BAKA4000 hinge construction, brown
    Code: SB00008726
    Art. Nr.: 500001330
    Price:
    From €0.73
    In Stock: 0 pc.
  18. Cover for BAKA4000 hinge construction, beige
    Cover for BAKA4000 hinge construction, beige
    Code: SB00008725
    Art. Nr.: 500001329
    Price:
    From Special Price €0.51 was €0.73
    This price applies only to items in stock. For larger quantities price is calculated upon request.
    In Stock: 32 pc.
  19. Cover for BAKA4000 hinge construction, grey
    Cover for BAKA4000 hinge construction, grey
    Code: SB00008723
    Art. Nr.: 500001327
    Price:
    From €0.73
    In Stock: 4 pc.

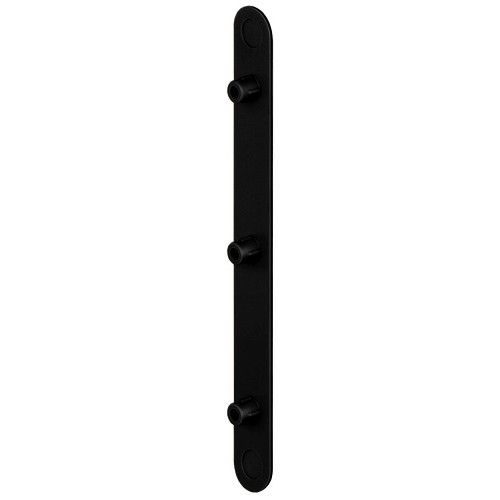

  20. Cover for BAKA 4000 hinge construction, black
    Cover for BAKA 4000 hinge construction, black
    Code: SB00008724
    Art. Nr.: 500001328
    Price:
    From €0.73
    In Stock: 0 pc.
    Visma Quote
Manufacturer SIMONSWERK
hinge type exterior door hinge
hinge shape rounded
door direction universal use for DIN right and left hand doors
class as per EN 1935 class 2
fire safety suitable for fire and smoke safety doors
bundling options hinge backplates and covers in suitable colour
leaf material wood
load capacity high
leaf maximum weight 180 kg
suitable for aluminium frames not suitable
suitable for steel frames not suitable
suitable for industrial frames suitable
suitable for timber frames suitable
anti-corrosion resistance certified according to EN 1935 - depending on finish
anti-corrosion resistance in accordance with EN 1935 class 4 - very high
sound insulation yes, with acoustic seal
adjustment adjustable
adjustment type with eccentrics
groove for leaf seal yes
anti-intruder protection yes, integrated safety pin
cutter diameter 20 mm
knuckle length 140 mm
knuckle diameter 20 mm
collar ring 30 mm
spindle diameter 10 mm
height 140 mm
maintenance not required (self-lubricating bearings)
installation template available for sale or rent
fastening elements must be ordered separately
material coloured steel / stainless steel
Series BAKA
