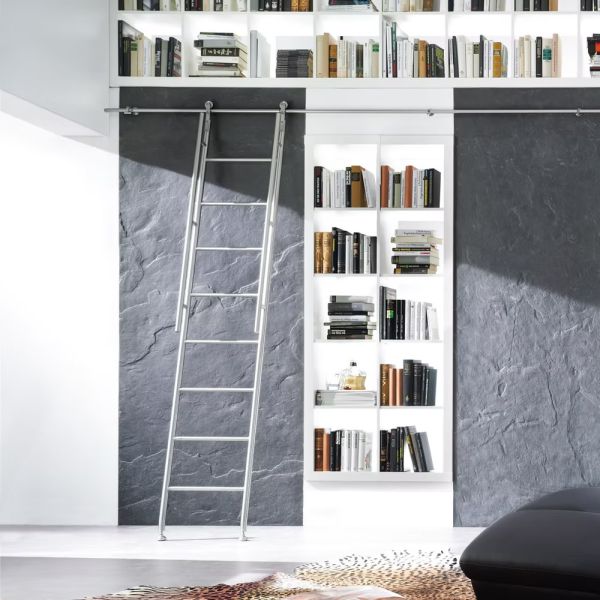

Sliding ladder KLASSIK BASIC SL.6002.KL

Sliding ladder KLASSIK BASIC SL.6002.KL

Manufacturer - MWE (Germany)

• an elegant and practical solution for apartments, private houses, offices and libraries, providing convenient access to higher shelves
• round-profile stainless steel ladder and a choice of stainless steel or wooden steps, available in any colour from the RAL colour range, allow the ladder design to be tailored to suit a wide variety of interiors
• special roller head allows the ladder to glide effortlessly along the rail from one end to the other
• the ladder lifts slightly when moved, preventing it from touching the wall or shelves
• equipped with adjustable base that adapt to the ladder's angle of inclination, or roller base featuring the Auto-stop function for enhanced safety
• secure locking at a 10° angle

Technical data

• round profile guide rail: Ø20 mm
• installation: wall-mounted
• diameter of mounting roses: 20 / 40 / 50 / 60 mm (to be specified when ordering)
• distance between the entres of the mounting roses: max. 900 mm
• standard ladder length: 1.50 - 3.50 m (to be specified when ordering)
• vertical rails with a round profile Ø30 mm
• fixed at a 10° angle; when moved, the ladder lifts and its angle of inclination changes
• step spacing: 250 mm
• maximum load capacity: 150 kg
• anti-lift safety device adjustable with an eccentric screw
• optional accessory: matching handrails
  • handrails are included as standard for ladders with a height of 3000 mm or more

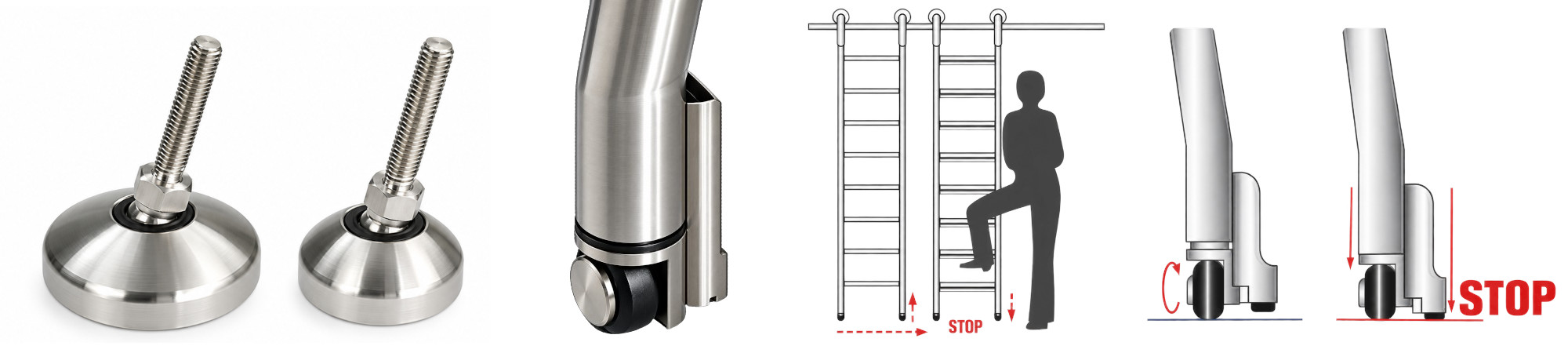

• two types of ladder base available:
  • articulating circular base - small / large; adaptable to the ladder's angle of inclination
  • roller base with an auto-stop function that activates the braking mechanism as soon as the ladder is in use

Material and finish options

• material: stainless steel
• standard finish: 600-groit satin matte finish, final sanding using the Scotch-Brite® procedure
• available on request: high-gloss polished finish
• available on request: PVD coating in a matte or polished finish, resistant to abrasion, in copper, gold, brass, titanium or black (available for components up to 1500 mm in length)

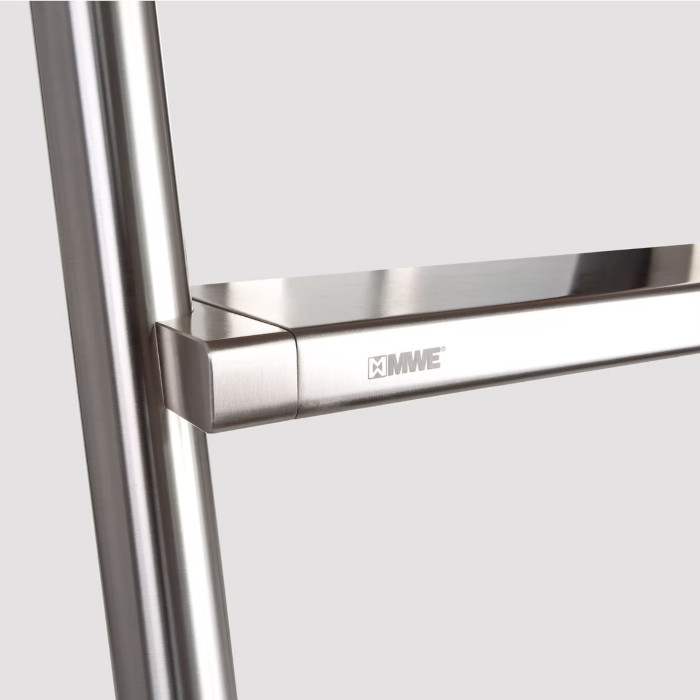

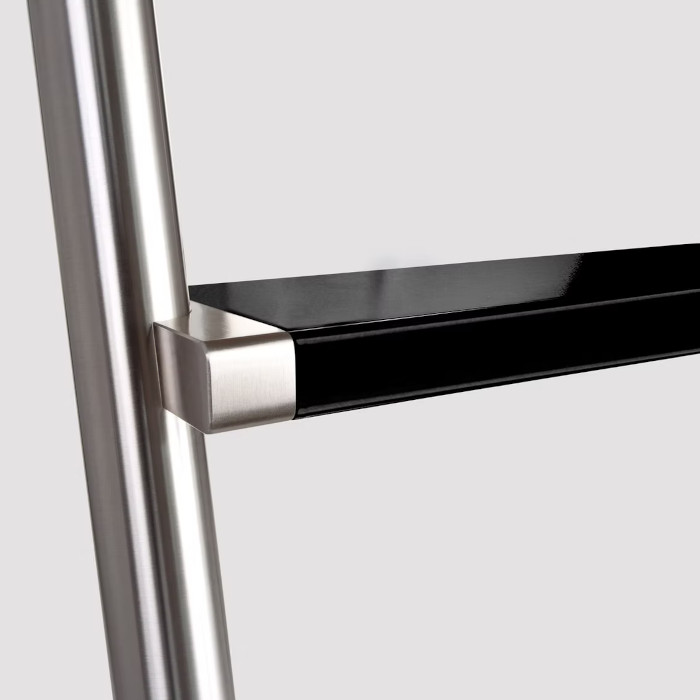

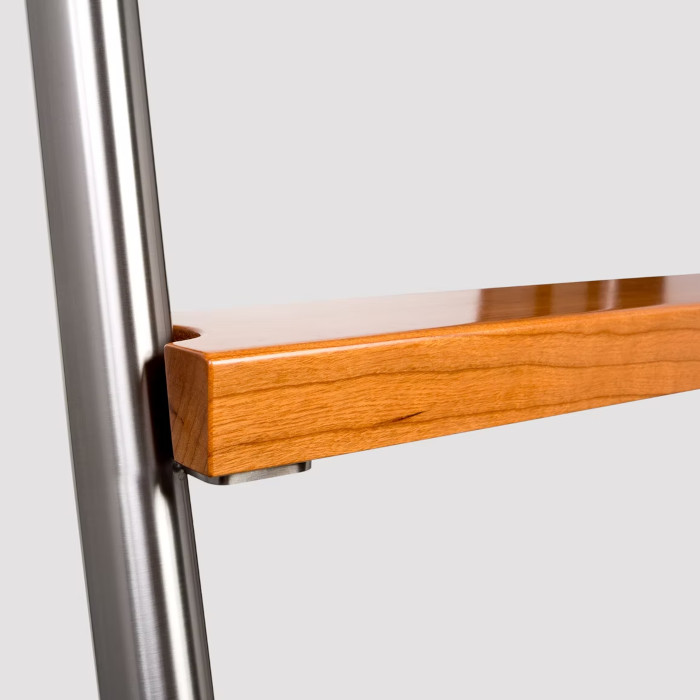

Steps

TECHNICAL DOCUMENTS

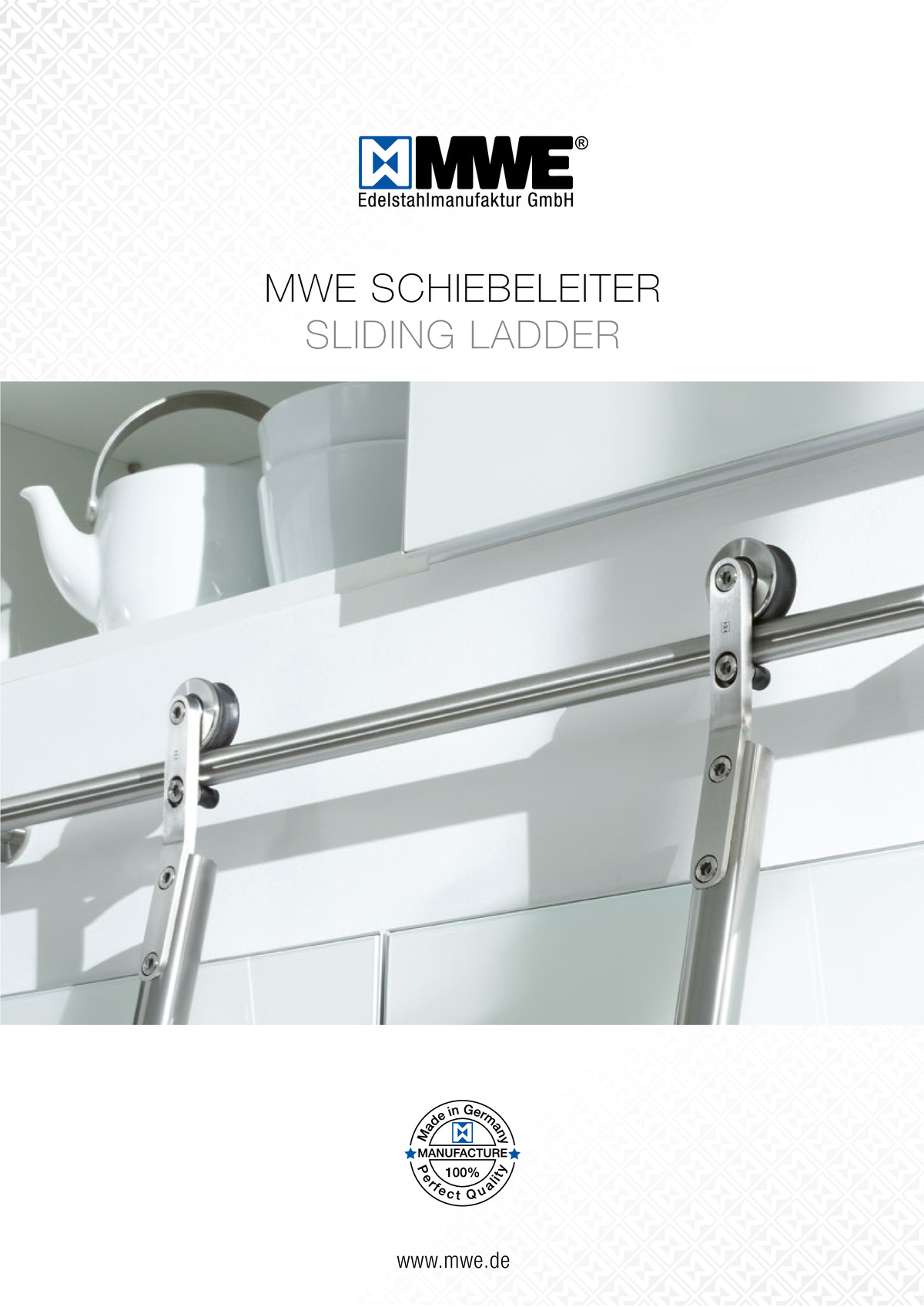

MWE sliding ladder - catalogue

MWE KLASSIK BASIC SL.6002.KL - sliding ladder with stainless steel rungs - technical data

MWE KLASSIK BASIC SL.6002.KL - sliding ladder with stainless steel steps - technical data

MWE KLASSIK BASIC SL.6002.KL - sliding ladder with wooden steps - technical data
